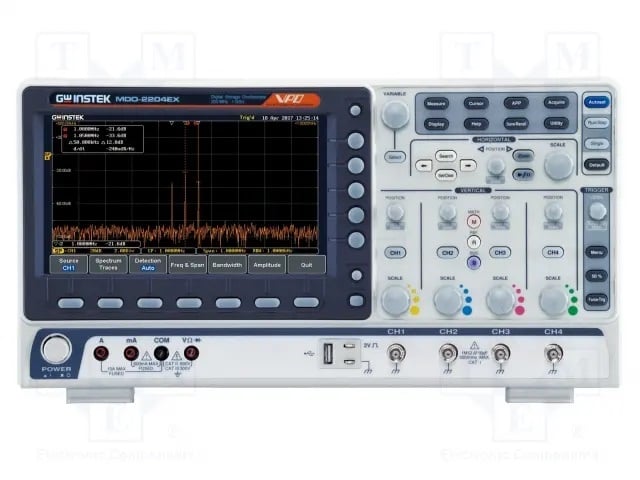

GW INSTEK MDO-2204EX 4 Channel Mixed-domain Oscilloscope

Actual Stock Can Be Confirmed After Placing the Order.
SKU
MDO-2204EX
AED8,055 AED7,671
Price Match Request
WhatsApp Facebook
The MDO-2204EX from GW Instek is a MDO-2000E series 200MHz, 4-channel, digital storage oscilloscope with built-in a spectrum analyser, arbitrary waveform generator, a 5000 count DMM and a 5V/1A power supply. While entering the spectrum mode, MDO-2000E series will display a full screen of frequency domain

PRODUCT OVERVIEW

The MDO-2204EX from GW Instek is a MDO-2000E series 200MHz, 4-channel, digital storage oscilloscope with built-in a spectrum analyser, arbitrary waveform generator, a 5000 count DMM and a 5V/1A power supply. While entering the spectrum mode, MDO-2000E series will display a full screen of frequency domain. Users can input centre frequency, span, start frequency and stop frequency based upon test requirements so as to rapidly and intuitively observe required frequency range that allows users to experience the user interface of a real spectrum analyser. MDO-2000E series frequency domain also includes spectrum trace type settings (normal, max-hold, min-hold and average). Users can freely select various spectrum traces for simultaneous display. Detection method (sample, +peak, -peak and average) can be individually set for each Trace.

One Oscilloscope ,Two Domains

MDO-2000E series is multi-functional mixed domain oscilloscope. The series includes two feature combinations : MDO-2000EG and MDO-2000EX. MDO-2000EG models have a built-in spectrum analyzer and a dual channel 25MHz arbitrary waveform generator and MDO-2000EX models feature a built-in a spectrum analyzer, arbitrary waveform generator, a 5,000 count DMM, and a 5V/1A power supply. The first of its kind, MDO-2000EX is the only oscilloscope to equip with a DMM and a power supply in the T&M industry.

Features

  • 200/100/70MHz bandwidth selections ; 2 or 4 channels
  • Real time sampling rate for each channel is 1GSa/s (2 channel models)
  • Maximum real time sampling rate is 1GSa/s (4 channel models)
  • Per Channel 10M memory depth and VPO waveform display technology
  • Waveform update rate up to 120,000 wfms/s
  • 8 “ WVGA TFT LCD display
  • Free Frequency Response Analyzer Software
  • Maximum 1M FFT provides higher frequency domain resolution measurements
  • High ,low and band pass filter functions
  • 29,000 segmented memories and waveform search functions
  • I2C/SPI/UART/CAN/LIN serial bus trigger and decoding function
  • Data log function is able to track signal changes up to 1000 hours
  • Network storage function
  • Mask test function
  • MDO-2000EG equips with a spectrum analyzer and a dual channel 25MHz AWG MDO-2000EX equips with a spectrum analyzer ; a dual channel 25MHz AWG; DMM and power supply.
More Information
Product Name GW INSTEK MDO-2204EX 4 Channel Mixed-domain Oscilloscope
Weight 11.38 Kg
Max Resolution 8bit
Sensitivity (SPL / 1 W @ 1 m) 1mV/div...10V/div
Trigger alternative, bus, runt, glitch, with delay, video signal, rising-edge, falling-edge
Trigger mode automatic, normal, single
Power Input voltage 300V
No of Channels 4
Power Supply (PoE) 100...240V AC, 48...63Hz
Impedance 1MΩ/16pF
Rise time ≤1,75ns
Display TFT 8" (800x480)
Bandwidth ≤200MHz
Dimensions 384x208x127.3mm
Manufacturer GW INSTEK
Color Black
Country of Origin United States
