Panasonic AW-UE80 Integrated 4K60 24x Optical Zoom & SDI/HDMI Full NDI PTZ Camera
Quick Overview
- 1/2.5" 4K MOS Sensor
- Up to UHD 4K60 & HD Output

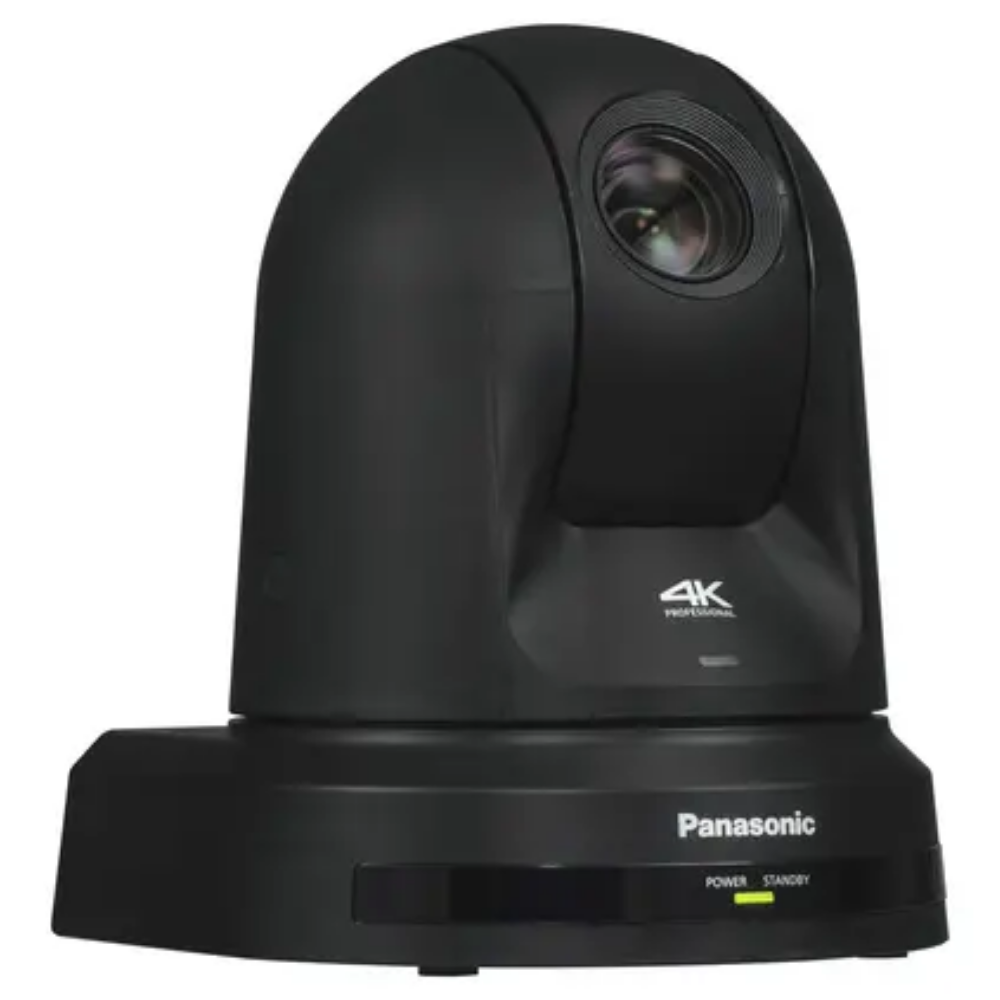

- HDMI, SDI, NDI HX2 & IP Video Output

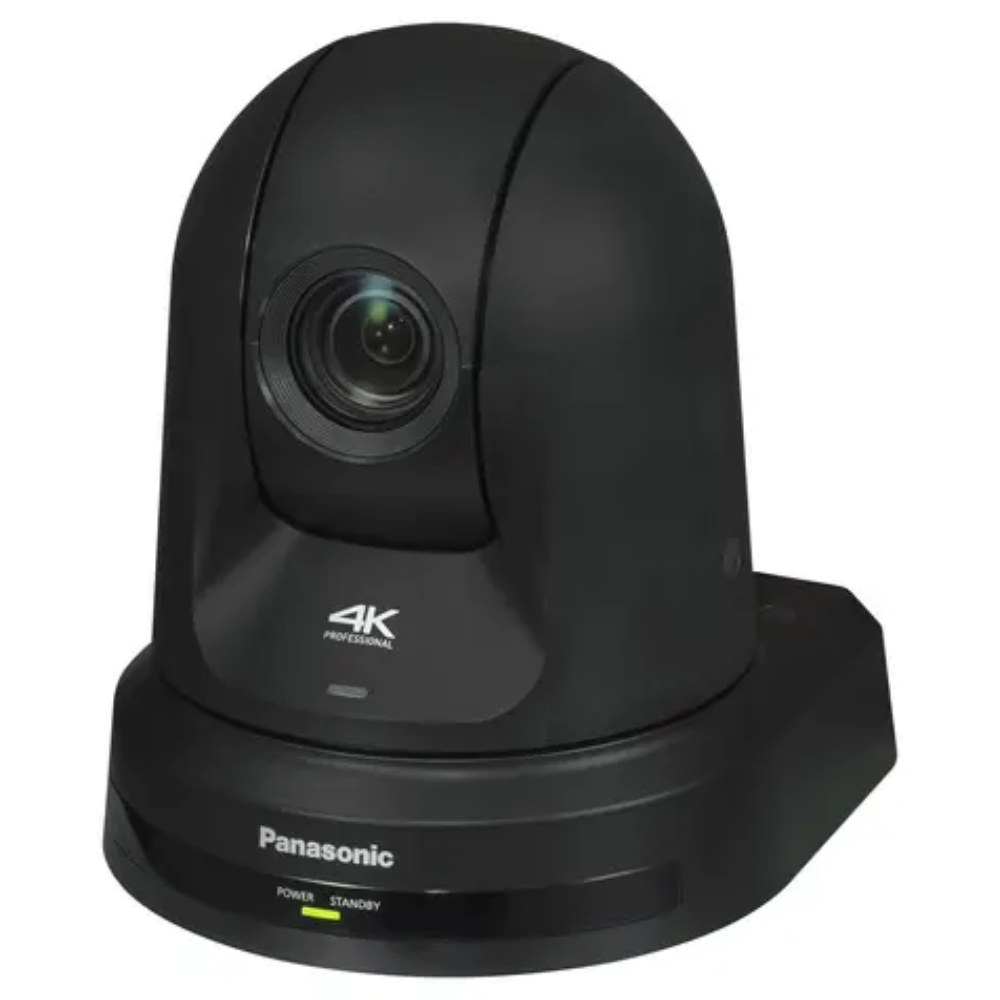

- 24x Optical, 28x UHD & 36x HD iZoom
- Wide 74.1° Horizontal Angle of View
PRODUCT OVERVIEW
AW-UE80 4K30 PTZ Camera

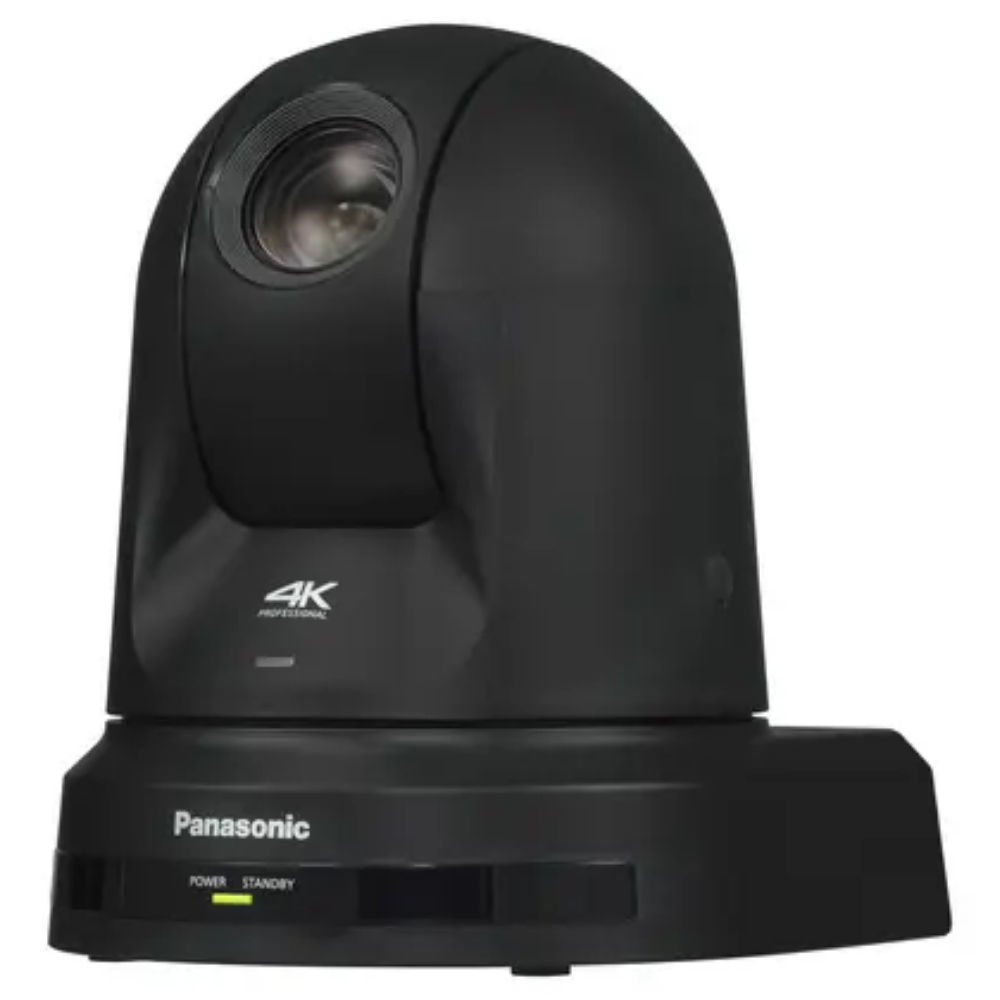

A professional UHD 4K PTZ camera with advanced auto tracking, powerful optical zoom, and flexible IP streaming options—engineered for broadcast-quality performance in education, corporate, and live production environments.
Professional 4K PTZ Imaging System
The AW-UE80 delivers UHD 4K30 video through HDMI with advanced PTZ functionality and integrated auto tracking, making it ideal for fixed installations where reliability and image precision are critical.
Designed for modern hybrid environments, it supports IP streaming workflows while maintaining excellent image clarity through a high-performance MOS sensor and optical zoom system.
Core Capabilities
Engineered to deliver stability, flexibility, and broadcast-grade performance in demanding production environments.
System Overview Gallery
Visual overview of design, installation flexibility, and hardware architecture.
Deploy Professional Video Infrastructure
The AW-UE80 combines broadcast-level imaging, intelligent automation, and flexible IP connectivity to support modern content production workflows.
Request a Quote| Product Name | Panasonic AW-UE80 Integrated 4K60 24x Optical Zoom & SDI/HDMI Full NDI PTZ Camera |
|---|---|
| Weight | 1.800000 |
| Image Sensor | 1/2.5"-Type |
| Effective Sensor Resolution | 8.49 Megapixel |
| Shutter Speed | 1/10000 to 1/25 Second |
| Max Optical Zoom | 24x |
| Max Digital Zoom | 28x ( in UHD 4K) | 36x ( in 1080p) |
| Max Video Output | via HDMI: Up to UHD 4K at 23.98/24.00/25/29.97 fps | via RJ45: 1080p at 23.98/24.00/25/29.97/50/59.94 fps | via SDI/BNC: Up to 1080p at 23.98/24.00/25/29.97/50/59.94 fps |
| Max Recording Modes | No |
| Broadcast Output | NTSC/PAL |
| Wireless | No |
| Mounting | 1x 1/4"-20 Female | 1x M4 Female |
| Focal Length | 4.12 to 98.9mm |
| Maximum Aperture | f/1.8 to 4 |
| Minimum Focus Distance | 3.9" / 10 cm |
| Internal Recording | No |
| Audio Recording | 2-Channel 16-Bit 48 kHz AAC LC Audio |
| Broadcast Output | NTSC/PAL |
| Pan | 350° (-175 to 175°) at 0.08 to 180°/s |
| Tilt | 350° (-30 to 90°) at 0.08 to 180°/s |
| Tally Light | Yes |

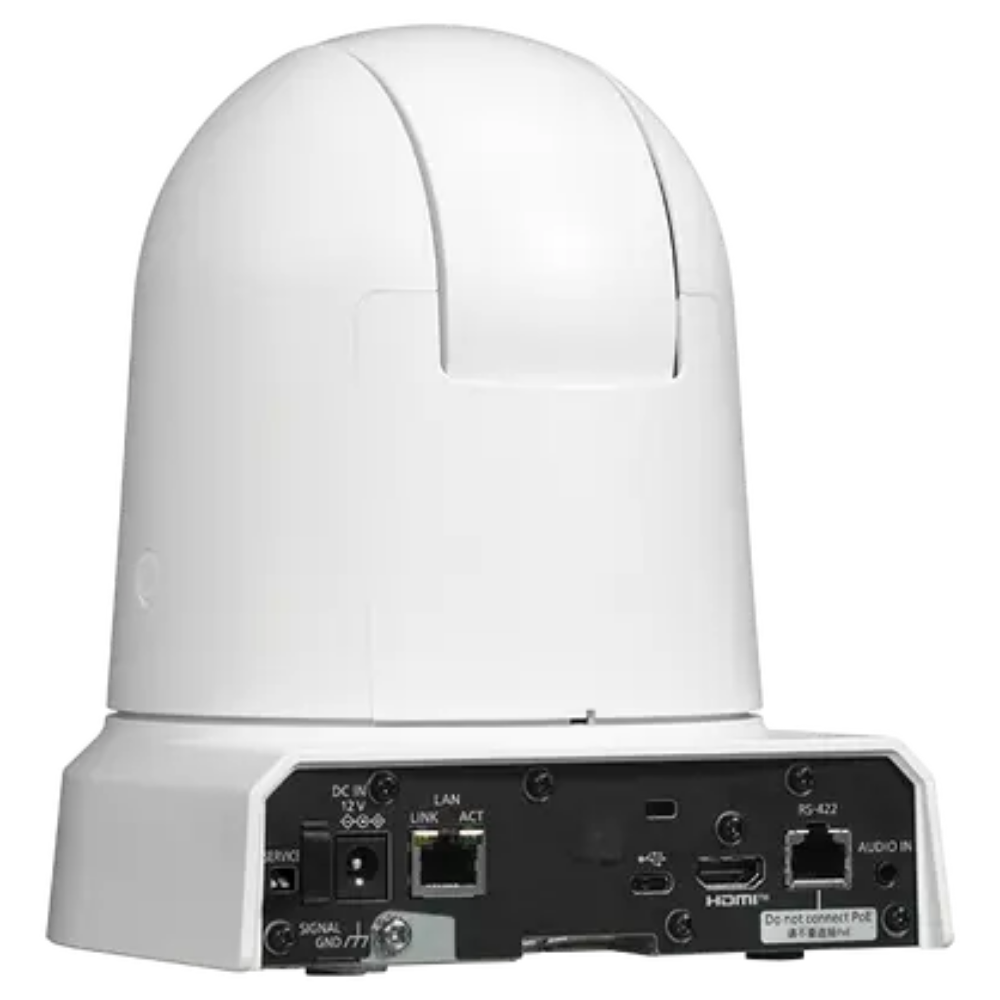

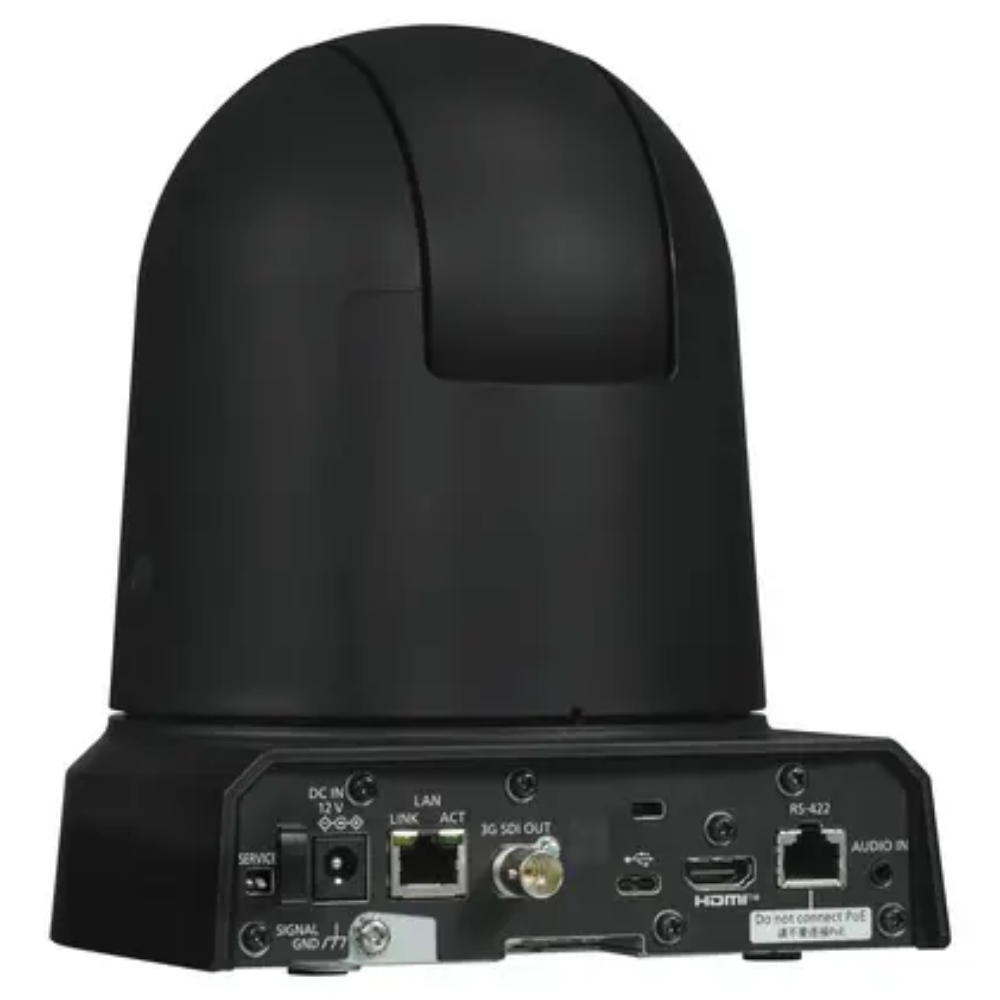

| Video I/O | 1x HDMI 2.0 Output 1x BNC (3G-SDI) Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input |
| Other I/O | 1x RJ45 (LAN) Control Input 1x RJ45 (RS-422) Input |
| Built-In Microphone | Yes |
| Power I/O | 1x Barrel (10.8 to 13.2VDC) Input |
| Built-In Speaker | No |
| Operating Temperature | 32 to 104°F / 0 to 40°C at 20 to 90% Humidity |
| Storage Conditions: | -4 to 122°F / -20 to 50°C |
| Environmental Resistance | No |
| Dimension | 7.6 x 6.5 x 6.3" / 192.1 x 166 x 160 mm |
| Package Weight | 3.67 kg |
| Packaging Dimensions | 35.56 × 34.04 × 30.73 cm |
| Certifications | FCC |
| Manufacturer | Panasonic |
