Panasonic AW-UR100 4K Outdoor and 24x Optical Zoom Professional PTZ Camera
Quick Overview
- 1/2.5" MOS Image Sensor
- Up to UHD 4K at 60 fps
- 24x Optical Zoom, 10x Digital Zoom
- RS-422 and IP Control, Genlock
- IP65 Rated / Wiper / Heater / Defroster
PRODUCT OVERVIEW

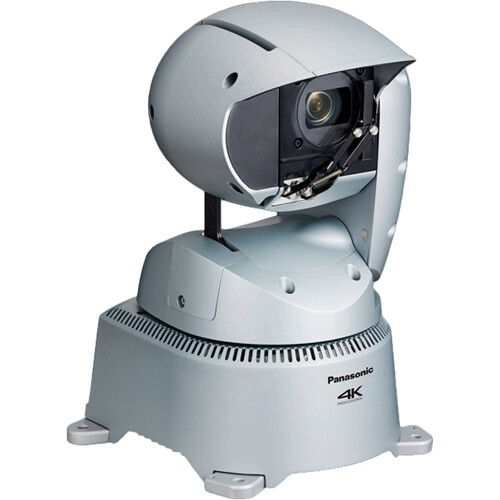

Panasonic AW-UR100 4K Outdoor and 24x Optical Zoom Professional PTZ Camera
The Panasonic AW-UR100 UHD 4K Outdoor Integrated PTZ Camera is a high-quality camera perfect for live outdoor broadcasts of sports and performances. It captures detailed 4K/60p images with the help of the Dynamic Image Stabilizing System. It is built to withstand even the harshest outdoor conditions, making it suitable for use in airports, warehouses, ships, and even during extreme weather conditions like snowstorms or typhoons. Its versatile range of protocols and interfaces allows for easy system setup and reduces the chances of missing shots or errors, giving video producers peace of mind.
High-precision Image Capture That Never Misses Those Crucial Moments
Industry's first IP65-compliant, outdoor-ready integrated remote camera for 4K60p shooting
24x optical zoom / 74.1° horizontal wide-angle images
Equipped with three types of image stabilizing systems: OIS, EIS, and D.I.S.S. (Dynamic Image Stabilizing System)
Cropping (+ Zoom) Function
Durability for Continuous Shooting Even in Harsh Environments
Passing Six Rigorous Durability Tests
Equipped with a Defroster (-15°C)
Equipped with a Wiper on the Lens
Flexibility in System Construction
Various I/F and Supported Protocols
Compatible with FreeD, enabling the construction of AR/VR systems
24x Optical Zoom, Wide Horizontal Angle of View
The camera's wide-angle lens features a horizontal angle of view of 74.1° at its widest and 3.3° at the tele end. The 24x optical zoom further expands the shooting range of the AW-UR100.
Three Image Stabilization Modes
Three types of image stabilization—Optical Image Stabilization (OIS), Electronic Image Stabilization (EIS), and Dynamic Image Stabilizing System (DISS)—ensure image capture remains stable regardless of environmental factors. Easily mount your camera on a high pole and resist wind velocities up to 15 m/sec. DISS facilitates the pan/tilt function and has improved responsiveness to minimize trembling and maintain smooth rotation. The OIS and EIS in combination provide two-step vibration correction for a stable image regardless of the installation environment.
Durability in Harsh Environments
The paint and resin used in the AW-UR100's construction are salt, corrosion, and water-resistant, as well as unaffected by ultraviolet rays. It has an IP65 rating and comes with an integrated wiper, heater, and defroster for environments as cold as 5°F.
Robust Video Connections
The camera comes equipped with video transmission IFs that can support baseband transmissions of 3G-SDI, 12G-SDI, and SFP+ fiber. Major IP transmissions of NDI, SRT, and RTMP are also supported for integrations with existing system configurations.
Built-In Cropping Function
Crop a portion of UHD 4K video using three cropping positions and 10x digital zoom. Access these parameters using a separately available remote camera controller or a PC and the PTZ control center software.
FreeD Compatibility
Connect the AW-UR100 with an AR/VR system thanks to its FreeD-compliant command output. Easily construct a digital environment without an encoder by utilizing the tracking data of the camera in conjunction with synchronization signals.
| Product Name | Panasonic AW-UR100 4K Outdoor and 24x Optical Zoom Professional PTZ Camera |
|---|---|
| Weight | 9.000000 |
| Image Sensor | 1/2.5"-Type |
| Effective Sensor Resolution | 8.49 Megapixel |
| Shutter Speed | 1/10000 to 1/25 Second |
| Max Optical Zoom | 24x |
| Max Digital Zoom | 10x |
| Max Video Output | via RJ45 Up to UHD 4K via SDI/BNC Up to UHD 4K |
| Max Recording Modes | No |
| Broadcast Output | NTSC/PAL |
| Wireless | No |
| Focal Length | 4.12 to 98.9mm |
| Maximum Aperture | f/1.8 to 4 |
| Minimum Focus Distance | 3.9" / 100 mm (Wide) to 47244.1" / 1200 m (Tele) |
| Internal Recording | No |
| Audio Recording | No |
| Broadcast Output | NTSC/PAL |
| Presets | 100 via IP, RS-422 |
| Pan | Pan: 350° (-175 to 175°) at 0.08 to 60°/s |
| Tilt | Tilt: 240° (-30 to 210°) at 0.08 to 60°/s |
| Tally Light | Yes |

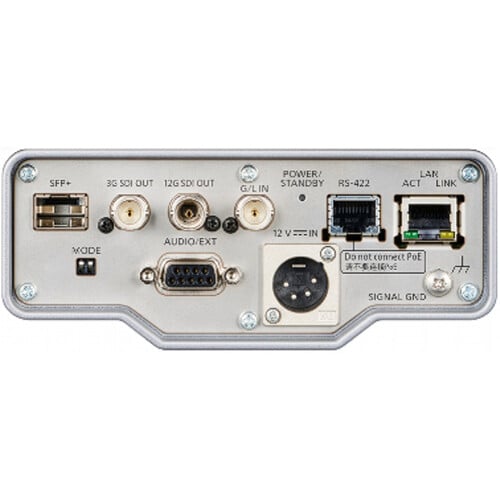

| Video I/O | 1x BNC (12G-SDI) Output 1x BNC (3G-SDI) Output 1x RJ45 (NDI) Input/Output |
| Other I/O | 1x BNC (Genlock) 1x RJ45 (RS-422) 1x D-Sub 9-Pin (Camera Interface) |
| Built-In Microphone | No |
| Power I/O | 1x XLR 4-Pin (12 to 21.8VDC) Input |
| Operating Temperature | 5 to 113°F / -15 to 45°C at 10 to 100% Humidity |
| Storage Conditions: | -4 to 131°F / -20 to 55°C |
| Image Sensor | 1/2.5"-Type CMOS |
| Package Weight | 12.62 Kg |
| Packaging Dimensions | 60.96 × 40.64 × 39.37 cm |
| Manufacturer | Panasonic |
Product Datasheet
