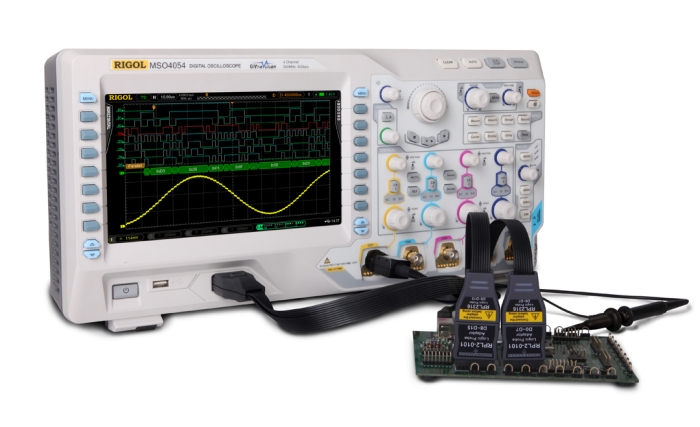

Rigol MSO4054 500MHz 4 Channel Digital Oscilloscope
Actual Stock Can Be Confirmed After Placing the Order.
SKU
MSO4054
Pay 4 interest-free payments of AED 421.00.Learn more
RIGOL MSO4054 is the new four-channel mixed signal oscilloscope (500 MHz) with 16-channel Logic Analyzer. RIGOL MSO4054 provides up to 110,000 wfms/s waveform acquisition rate.
PRODUCT OVERVIEW
RIGOL MSO4054 is the new four-channel mixed signal oscilloscope (500 MHz) with 16-channel Logic Analyzer. RIGOL MSO4054 provides up to 110,000 wfms/s waveform acquisition rate.
RIGOL MSO4054 digital oscilloscope is perfect for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.
FEATURES
- Bandwidth: 500 MHz
- 4 channels + 16 channels for Logic Analyzer
- Real-time sample rate: analog channel up to 4 GSa/s, digital channel up to 1 GSa/s
- Memory depth: analog channel up to 140 Mpts, digital channel up to 28 Mpts
- Innovative UltraVision technology
- Waveform acquisition rate up to 110,000 wfms/s
- Low noise floor, min. vertical sensitivity is 1 mV/div
- A variety of Trigger functions
- Real time waveform record, replay and analysis
- 9-inch color LCD
- Standard interface: LAN, USB host and device, AUX, VGA, USB-GPIB (opt.)
| Product Name | Rigol MSO4054 500MHz 4 Channel Digital Oscilloscope |
|---|---|
| Weight | 4.79 Kg |
| Max Resolution | 800 × 480 Pixel |
| Sensitivity (SPL / 1 W @ 1 m) | 2 mV/div to 5 V/div |
| Trigger mode | PAL, NTSC, SECAM |
| Power Input voltage | DC/AC coupling, CAT I 300 Vrms, CAT II 100 Vrms |
| No of Channels | 4 |
| Impedance | Analogue: 1MΩ ± 1% // 14pF ± 3pF or 50Ω ± 1.5% Digital: 101kΩ ± 1% // 8pF ± 2pF |
| Display | 9" WVGA-Color-LCD |
| Bandwidth | 500 MHz |
| Dimensions | 44 cm × 21.8 cm × 13 cm |
| Manufacturer | Rigol |
| Color | White |
| Country of Origin | United States |
