PRODUCT OVERVIW

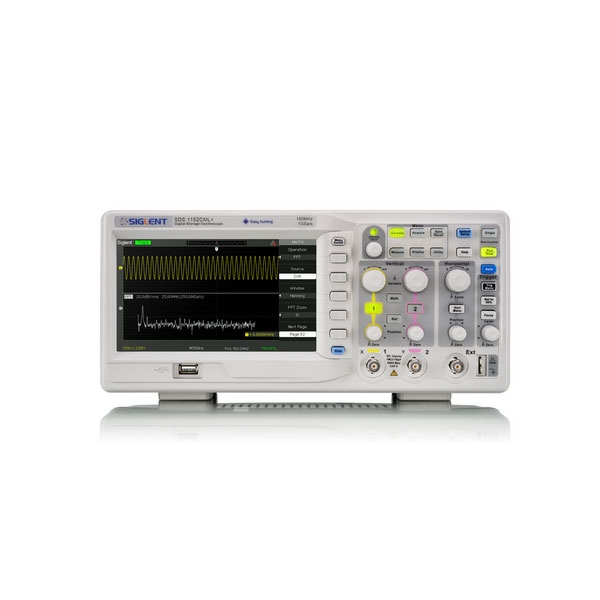

This Siglent SDS1102CML is a high quality two channel digital storage oscilloscope. It offers a real-time sample rate of up to 1 GSa/s, up to 100 MHz of bandwidth and a memory depth of 2 Mpts.

These Siglent SDS1000CML oscilloscopes are entry level-devices at affordable pricing without compromising on quality. The low pricing level results from the large amount of units sold as well as substantial economies. They are equipped with well designed and easy to use control panels offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.

The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.

Key Features

• 150 MHz, 100 MHz, 50 MHz bandwidth models
• Real-time sampling rate up to 1 GSa/s, Equivalent-time sampling rate up to 50 GSa/s
• Memory Depth up to 2 Mpts
• Trigger types: Edge, Pulse, Video, Slope, Alternate
• Waveform math functions:+, -, *, /, FFT
• 6 digital frequency counter
• Supports Multi-language display and embedded online help
• Screensaver from 1 minute to 5 hours
• Digital filter and waveform recorder function
• Shortcut storage function key
• 7 inch TFT-LCD display with 800 * 480 resolution
• Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail
