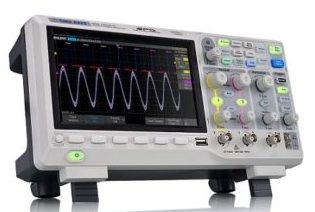

PRODUCT OVERVIEW

Siglent’s SDS1202X-E Oscilloscope breaks yet another performance-to-price barrier! With features not available in most oscilloscopes at twice this price, it offers a higher bandwidth, processing speed, and, and FFT resolution than other scopes in this class.

The SDS1202X-E employs a new generation of SPO technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It has a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of up to 400,000 frames / second (sequence mode). It also employs a 256-level intensity grading display and a color-temperature mode not found in other oscilloscopes in this class.

Serial bus trigger / decode comes standard.

With a waveform memory of 14 MB, the FFT function contains an impressive 1 MPts.

Key Features

• 200 MHz Bandwidth
• 1 GSa/s Real-Time Sampling Rate
• 14 MPts Waveform Memory
• 500 uV/div Sensitivity
• Maximum waveoform capture rate: 100,000 frames / second (Standard mode),
• 400,000 frames / sec (Sequence mode)
• Serial bus decode & trigger: standard
• Digital trigger provides low jitter
• Intensity-Graded display / Color-Temperature display mode
• Video triggering / HDTV
• Cursors * Measurement functions
• USB and LAN interfaces
• 7″ (diagonal) display
• Sequence trigger mode
• History function
• Secure erase feature
