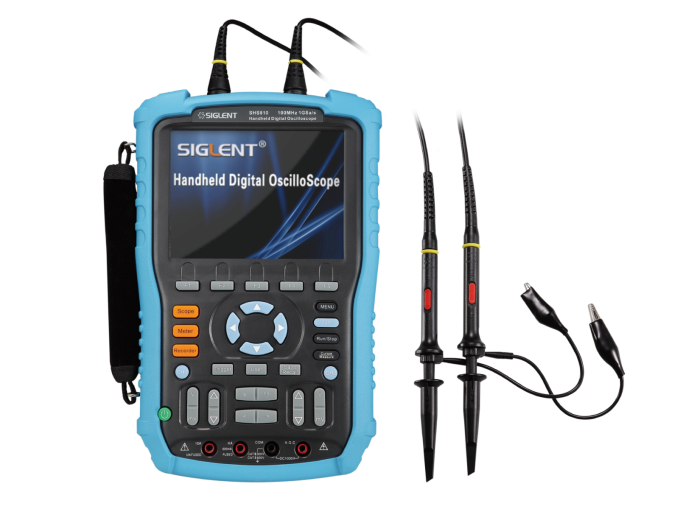

Siglent SHS806 60MHz Handheld Digital Oscilloscope

Actual Stock Can Be Confirmed After Placing the Order.
SKU
SHS806
AED2,163 AED2,060
Price Match Request
WhatsApp Facebook
Mobile 2 channel handheld DSO with 60 MHz bandwidth, 1 GSa/s and 2 Mpts memory. Combines oscilloscope, multimeter and recorder (including TrendPlot and waveform recorder) in one unit.

PRODUCT OVERVIEW

Mobile 2 channel handheld DSO with 60 MHz bandwidth, 1 GSa/s and 2 Mpts memory. Combines oscilloscope, multimeter and recorder (including TrendPlot and waveform recorder) in one unit.

hese Siglent SHS800 / SHS1000 oscilloscopes are entry level-devices at affordable pricing without compromising on quality. The low pricing level results from the large amount of units sold as well as substantial economies. They are equipped with well designed and easy to use control panels offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.

The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.

Key Features

High-performance oscilloscope

  • Bandwidths: 60 MHz, 100 MHz, 150 MHz, 200 MHz; Memory depth: 2 Mpts
  • Real-time sampling rate: 1 GSa/s; Equivalent sampling rate: 50 GSa/s

Data recorder function

  • 7M internal storage, up to18 hours recording time
  • USB port, up to 3000 hours recording time
  • Record, replay and zoom functions supported

High precision multimeter

  • 6000 count display
  • Accurate measurement of DCV, ACV, DCI, ACI
  • Accurate measurement of Resistance, Diode, Capacitance, Continuity

Trend plot

  • 32 measurement trend plot analyzer
  • Scope: 800k points capacity, more than 24 hours recording time
  • Meter: 1.2M points capacity 9320 hours recording time at 0.05Sa/s
More Information
Product Name Siglent SHS806 60MHz Handheld Digital Oscilloscope
Weight 1.50 Kg
Max Resolution 320 × 234 Pixel
Sensitivity (SPL / 1 W @ 1 m) 2 mV/Div to 100 V/Div.
Power Input voltage DC and AC 60 mV to 1000 V (±1% ± 5 Digit)
No of Channels 2
Impedance 1MΩ±2%, 18pf±3pf
Rise time ≤5.8ns
Display 5.7" (14.48 cm) TFT true color LCD
Bandwidth 60 MHz
Dimensions 163 × 259 × 105 mm
Manufacturer Siglent
Color Black
Country of Origin United States
