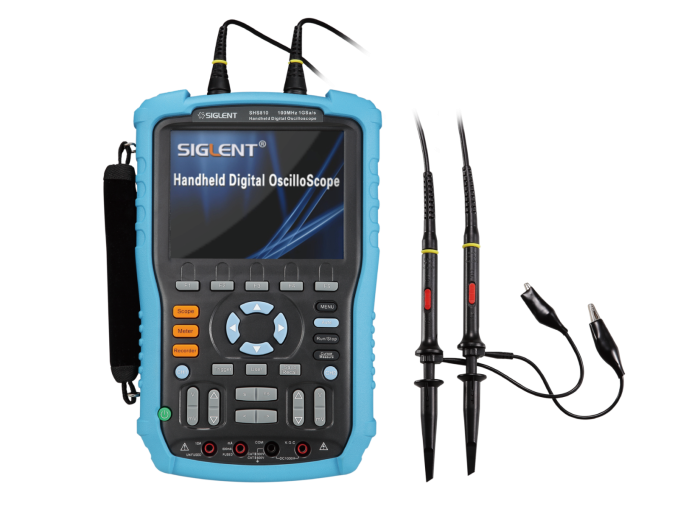

Siglent SHS810 100MHz Handheld Digital Oscilloscope
The Siglent SHS820 dual channel handheld oscilloscope provide the user with an oscilloscope, multimeter, and recorder (including trends and waveform recorder) functions all in one package.
PRODUCT OVERVIEW
Mobile 2 channel handheld DSO with 100 MHz bandwidth, 1 GSa/s and 2 Mpts memory. Combines oscilloscope, multimeter and recorder (including TrendPlot and waveform recorder) in one unit.
hese Siglent SHS800 / SHS1000 oscilloscopes are entry level-devices at affordable pricing without compromising on quality. The low pricing level results from the large amount of units sold as well as substantial economies. They are equipped with well designed and easy to use control panels offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
| Product Name | Siglent SHS810 100MHz Handheld Digital Oscilloscope |
|---|---|
| Weight | 1.50 Kg |
| Max Resolution | 320 × 234 Pixel |
| Sensitivity (SPL / 1 W @ 1 m) | 2 mV/Div to 100 V/Div. |
| Trigger mode | Support the NTSC, PAL and SECAM broadcasting systems of any field or line frequency. |
| Power Input voltage | DC and AC 60 mV to 1000 V (±1% ± 5 Digit) |
| No of Channels | 2 |
| Rise time | ≤3.5ns |
| Display | 5.7" (14.48 cm) TFT true color LCD |
| Bandwidth | 100 MHz |
| Dimensions | 163 × 259 × 105 mm |
| Manufacturer | Siglent |
| Color | Black |
| Country of Origin | United States |
